SAML/Staff Connector

Overview

The SAML Connector provides visitors or staff members the option to log in via your Google workspace or Microsoft Entra (Azure). This gives you the ability to provide a single sign on for anyone who has a login to your Google or Microsoft domain. For example, within a school, students and teachers may have school email accounts set up on the school's Google workspace, with the SAML Connector the students and teachers can use these accounts to login to the WiFi.

You can also use this connector for staff only to clearly differentiate between visitors and staff on your reports so that you can create accurate insights into your data. To see only visitor information on your reports, you can filter by role, to show User, Staff member and Unknown visitors. You must set up SAML on your Google Workspace or Microsoft Account to use the connector. To activate this feature, contact your customer success manager.

SAML Connector - Google

Overview

This section shows how to create and set up a WiFi SAML connector for Google.



The steps below will guide you through creating both a new Microsoft Entra application in Azure and a WiFi SAML connector in your WiFI Portal so your users can log in to your WiFi via Microsoft on your WiFi access journey.

Step 1 - Set up Google for SAM

The first step is to create a new App in Google.

1. Within your Google Workspace admin home page, click Apps



2. Click Web and mobile apps



3. Click Add App > Add custom SAML app



4. Add an app name and icon (this displays to users when they sign in to WiFi via the Google Workspace login)
5. On the following page there is an SSO URL, Entity and Certificate. Make a note of these details as you need this information to enter into the Portal connector settings, within Management > Connectors > SAML > Edit. You can return to these details at any time.
6. Complete the Service provider details as follows:

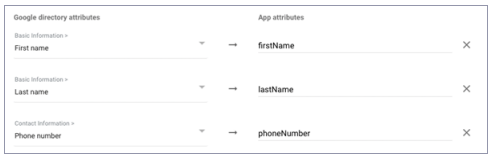

7. Click Continue and add any additional fields you want to pass to the portal. Common fields include First name, Last name or Phone number, which should be passed as firstName, lastName and phoneNumber respectively. Common Portal fields include:

   - title
   - firstName
   - lastName
   - phoneNumber
   - gender

   Any non-common fields may still be passed, this adds a new custom field to the user record in Marketing > CRM after the user logs in.



8. To complete the set up, click Finish

Step 2 - Create the new SAML connector in the WiFi Portal

1. In your WiFi Portal, navigate to Connectors and click on ‘Add’ to add a new SAML connector

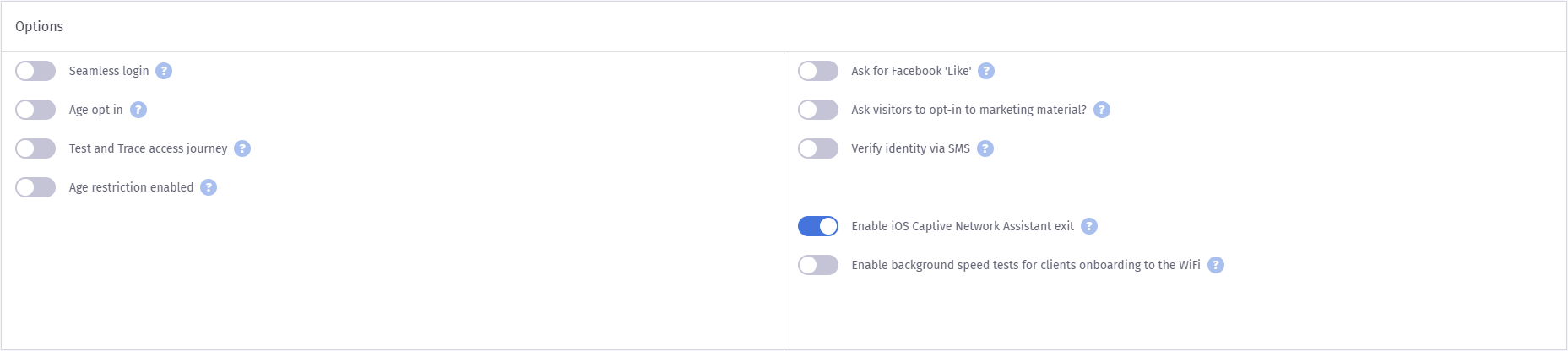

Complete the Options as follows:




3. Select the scopes you want the connector to be available for and click Save.

You can then configure your splash pages with your new SAML connector in Splash Page management via Onboarding > Splash pages.

You’re connected!

SAML Connector - Microsoft Entra (Azure)

Overview

This section shows how to create and set up a WiFi SAML connector for Microsoft Entra (Azure).

The steps below will guide you through creating both a new Microsoft Entra application in Azure and a WiFi SAML connector in your WiFI Portal so your users can log in to your WiFi via Microsoft on your WiFi access journey.

Step 1 - Create a new Entra enterprise application

The first step is to create a new Entra enterprise application in Microsoft Azure.

1. Log into Microsoft Azure as an account administrator
2. Navigate to Microsoft Entra ID



3. Within Microsoft Entra ID create a new Enterprise application

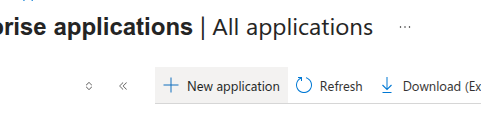

4. Within Enterprise applications create a New application

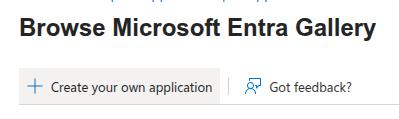

5. Within the Entra Gallery click on the Create your own application option

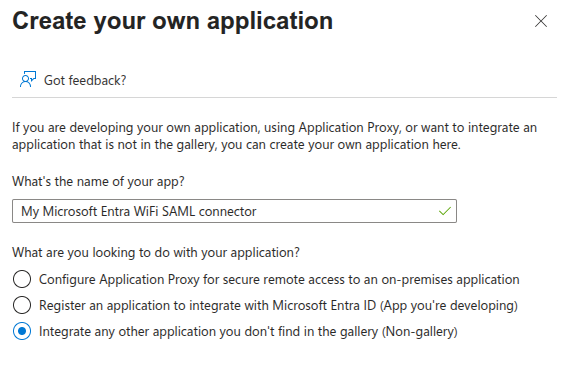

6. Give your new application a name and click Create

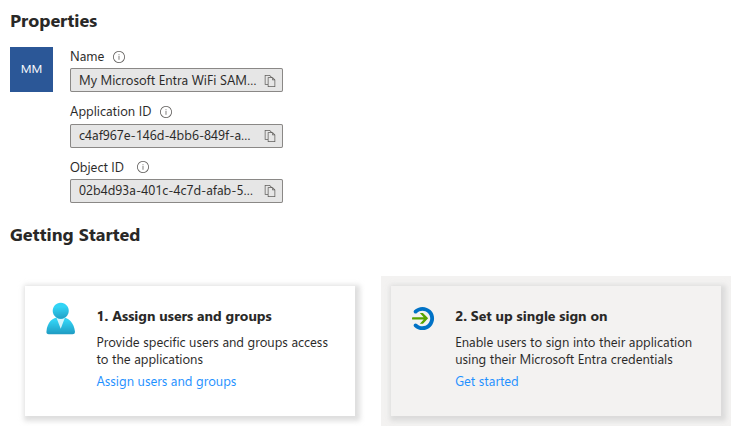

7. On the overview for your new application choose Set up single sign on

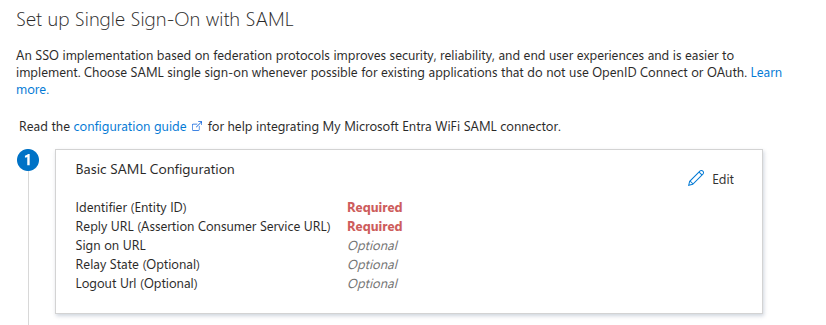

8. In the Single sign on options for your new application select SAML

Step 2 - Configure SAML for the Entra application

The next step is to configure the Basic SAML Configuration for the Entra application.

We need to configure the following:

Identifier (Entity ID)

This is the unique identifier for your new Entra application and will be used by the WiFi application and Microsoft to identify your application.

This value should be your WiFi domain with some additional entropy to identify your application within your organisation. The format for the identifier should be:

https://{YOUR_WIFI_PORTAL_DOMAIN}/access/auth/{UNIQUE_ENTRA_APPLICATION_IDENTIFIER}

The {UNIQUE_ENTRA_APPLICATION_IDENTIFIER} value should be a unique value for each Entra application that you create under your organisation for WiFi SAML authentication. In this example we will use a simple string that reflects the name of our example Entra application e.g. ‘my-entra-saml-app’. You can use a string or a number here as long as the value is unique.

For example if your WiFi domain is ‘eu.wifi.purple.ai’ then the ‘Identifier (Entity ID)’ would be:

https://eu.wifi.purple.ai/access/auth/my-entra-saml-app

If you are creating several Entra applications for WiFi SAML authentication then each of these will need a unique ‘Identifier (Entity Id)’ e.g.

https://eu.wifi.purple.ai/access/auth/app1
https://eu.wifi.purple.ai/access/auth/app2
https://eu.wifi.purple.ai/access/auth/app3

Reply URL

This value is the WiFi application endpoint for SAML authentication responses. This should be in the format:

https://{YOUR_WIFI_PORTAL_DOMAIN}/access/auth?acs

For example if your WiFi domain is ‘eu.wifi.purple.ai’ then the ‘Reply URL’ would be:

https://eu.wifi.purple.ai/access/auth?acs

Edit the Basic SAML Configuration

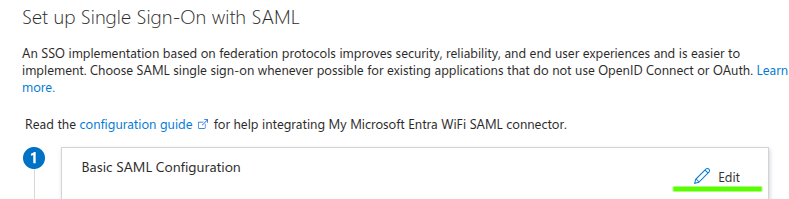

Click on the ‘Edit’ icon to add the Identifier (Entity ID) and Reply URL for your Entra application e.g.

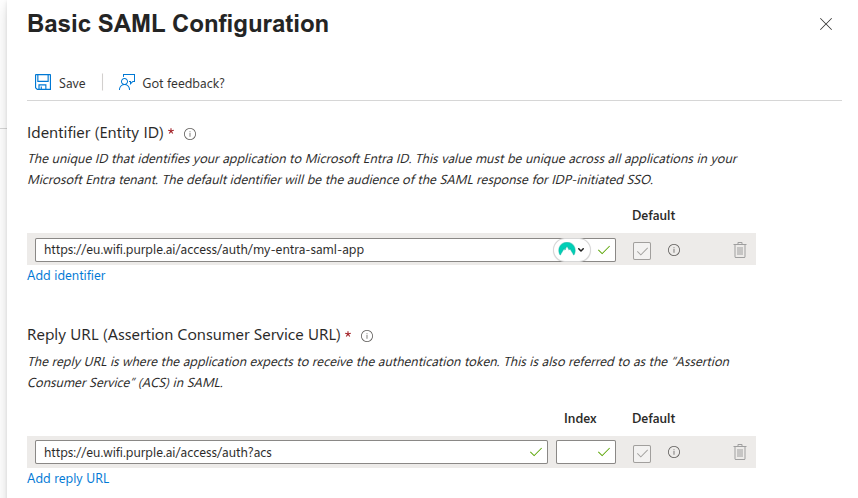

In the editor window that opens enter the values into the relevant fields e.g.

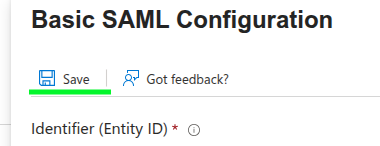

When you have added both values click on Save to save the configuration.

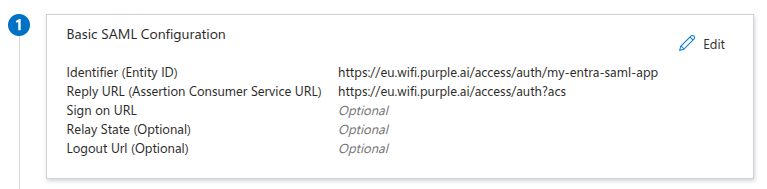

You should then see your Basic SAML Configuration has been updated e.g.

Step 3 - Create the new SAML connector in the WiFi Portal

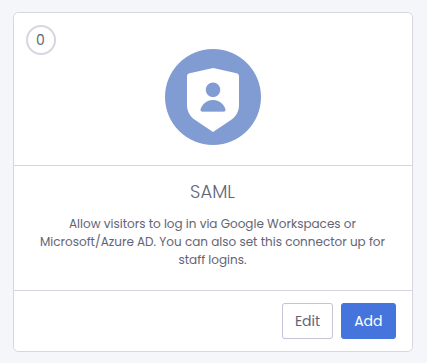

1. In your WiFi Portal, navigate to Connectors and click on Add to add a new SAML connector

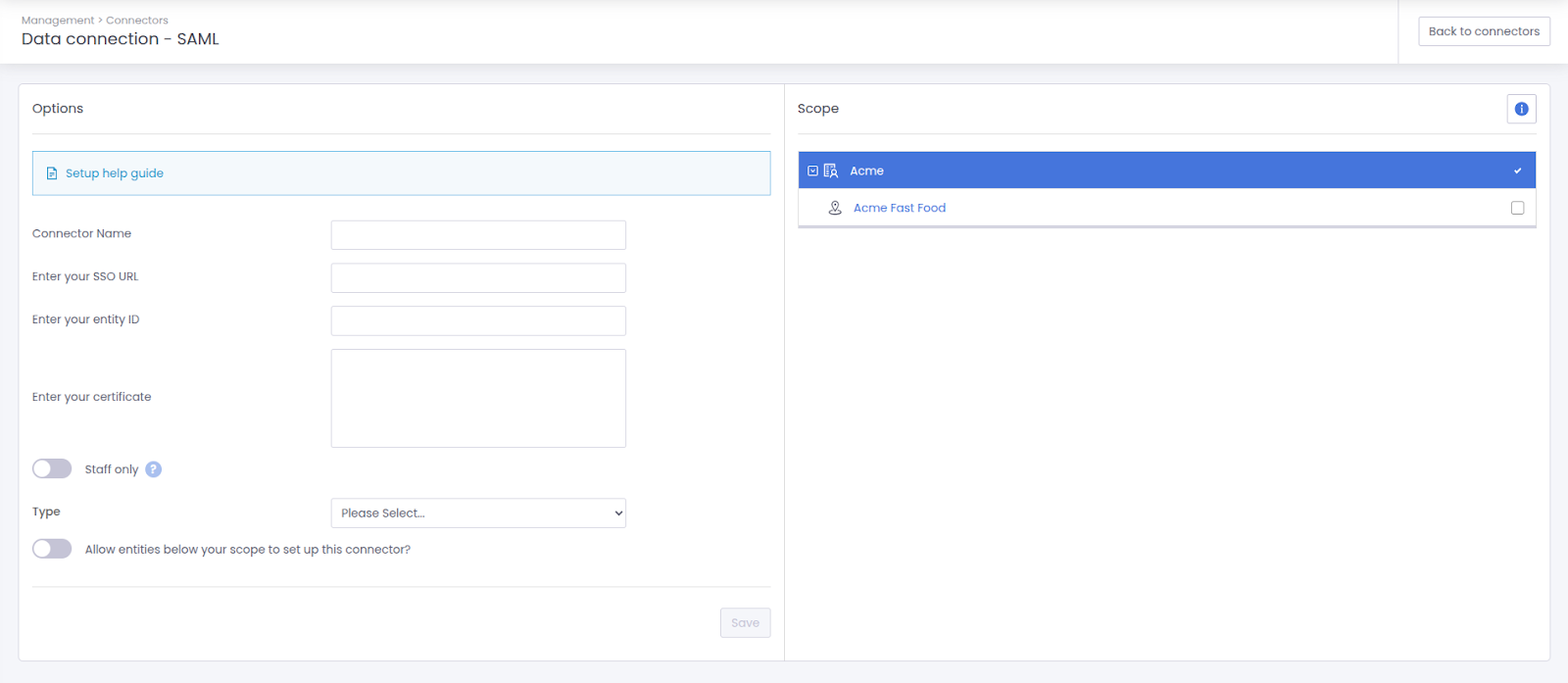

You will then need to configure the following fields for your new connector:

Connector Name

Enter a name for your new connector

Enter your SSO URL

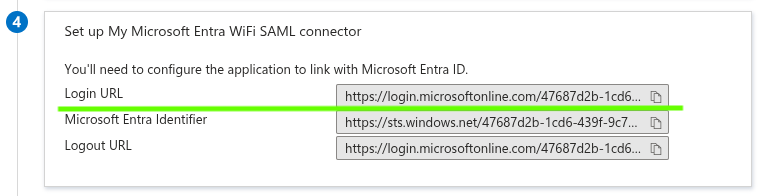

This value needs to be the ‘Login URL’ for your Entra application. This can be found in section 4 in the SAML configuration for your Entra application in Azure.

Copy the ‘Login URL’ value and enter it into the SSO URL field.

Enter your entity ID

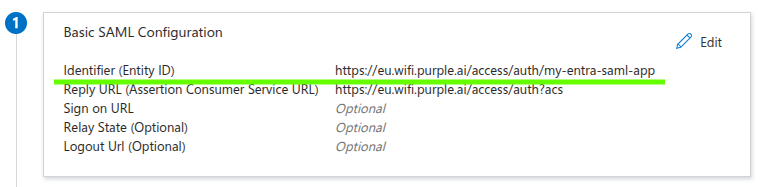

This value needs to be the unique ‘Identifier (Entity ID)’ for your Entra application that you set up in Step 2 of this guide. This can be found in section 1 ‘Basic SAML Configuration’ in the SAML configuration for your Entra application in Azure.

Copy your ‘Identifier (Entity ID)’ and enter it.

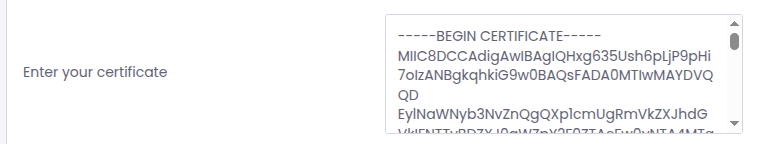

Enter your certificate

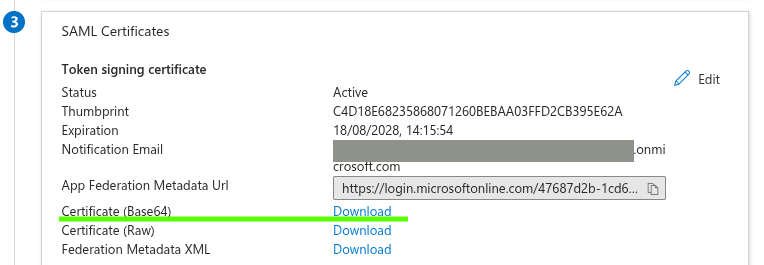

This value needs to be the Base64 encoded x509 certificate for your Entra application. This value can be obtained by downloading the certificate via the ‘Download link’ found in section 3 ‘SAML Certificates’ in the SAML configuration for your application on Azure.

When you have downloaded the Base64 certificate, open the file in a text editor and copy and paste the entire contents into the connector certificate form field.

Staff only

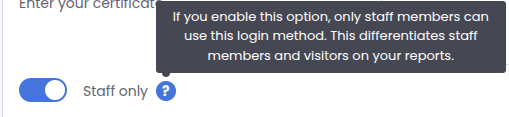

Choose whether your connector is for Staff only or if it is for all WiFi users.

Note that you will need to configure Users and Group access for your Entra application in  Azure if you wish to make it available for staff only. See Microsoft's online documentation for more information regarding how to configure access for your Entra application.

Type

Choose Microsoft / Azure AD as the type for the SAML connector.

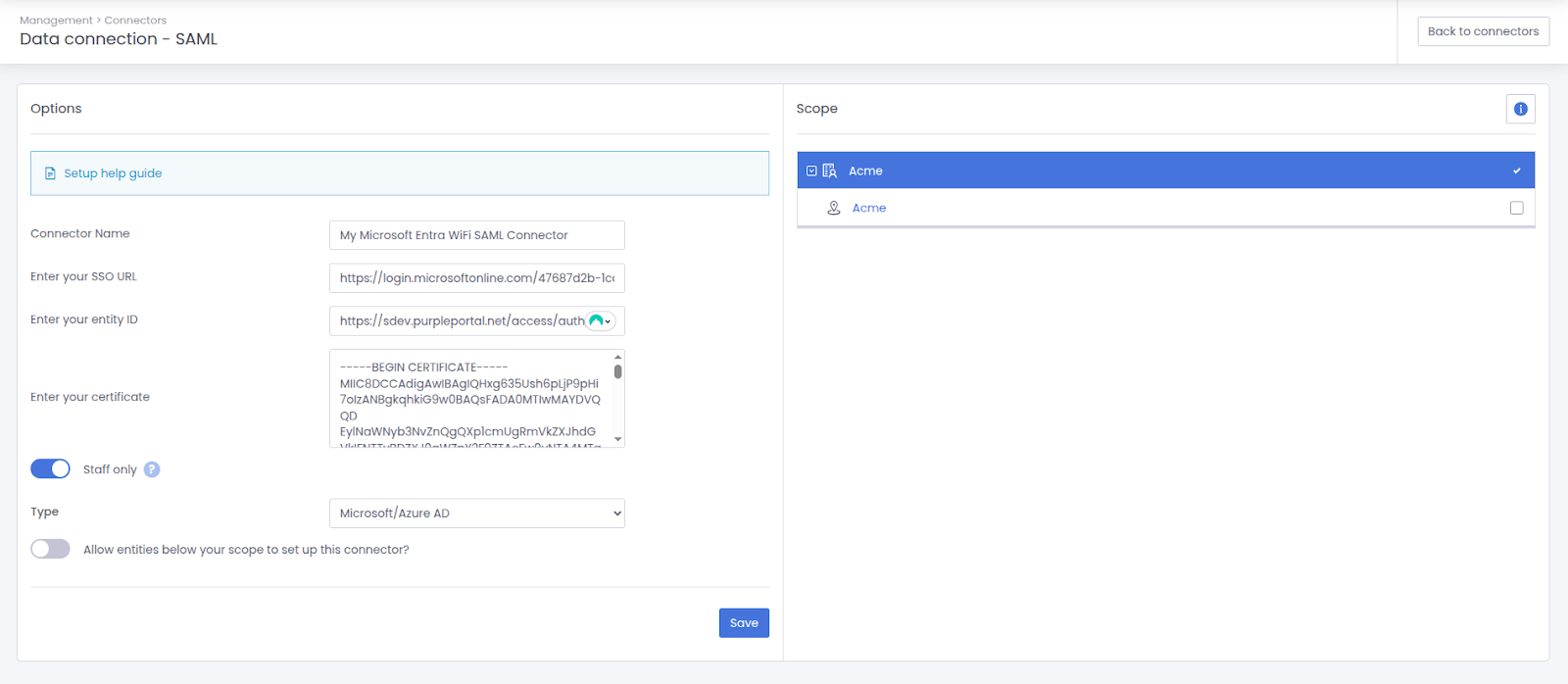

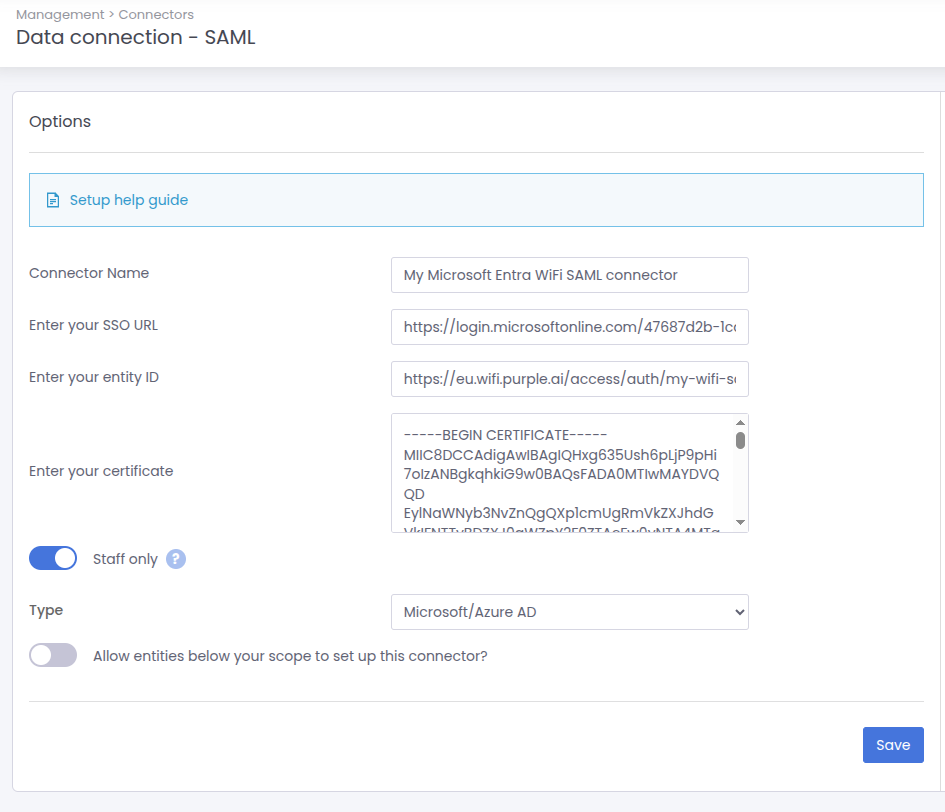

After configuring all fields for the new connector then the form should look similar to the image below e.g.

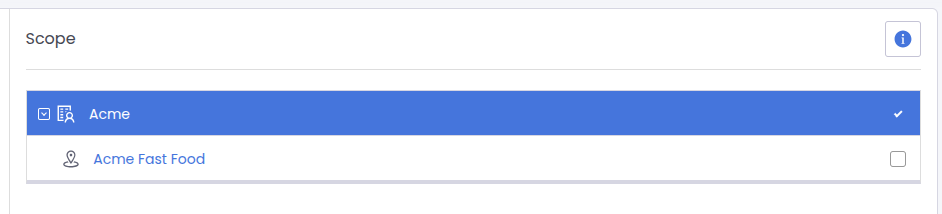

Choose a scope for your connector and then click Save to save it.

You can then configure your splash pages with your new SAML connector in Splash Page management via Onboarding > Splash pages.

You’re connected!

Adding a SAML Connector to a WiFi Splash Page

Overview

This section shows how to add a WiFi SAML connector to a Splash Page.

HTML Splash Page

1. Navigate to Onboarding > Splash pages and Edit or Create a new offline HTML splash page

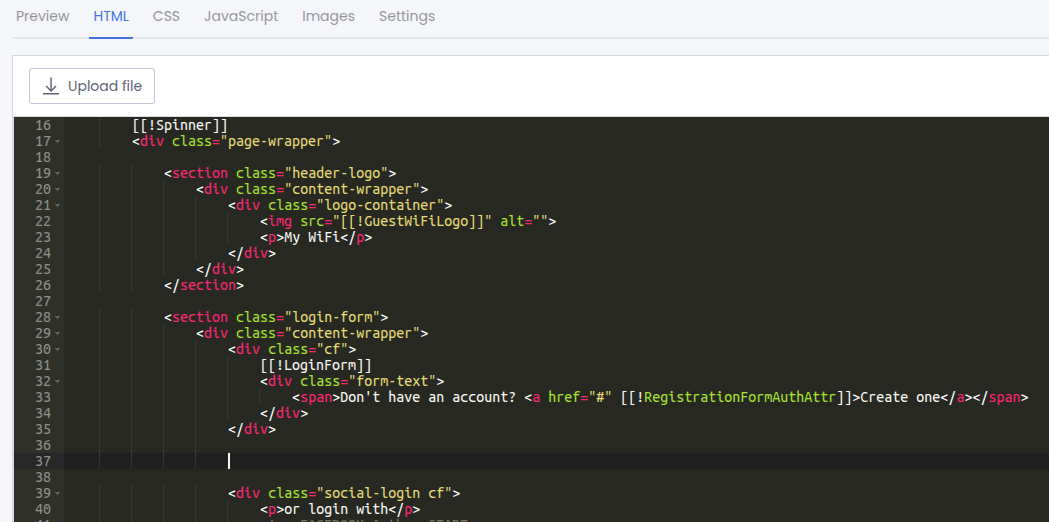

2. On the HTML tab in the editor, locate the position in the HTML that you’d like to add a SAML authentication link and click to place the cursor at that position e.g.

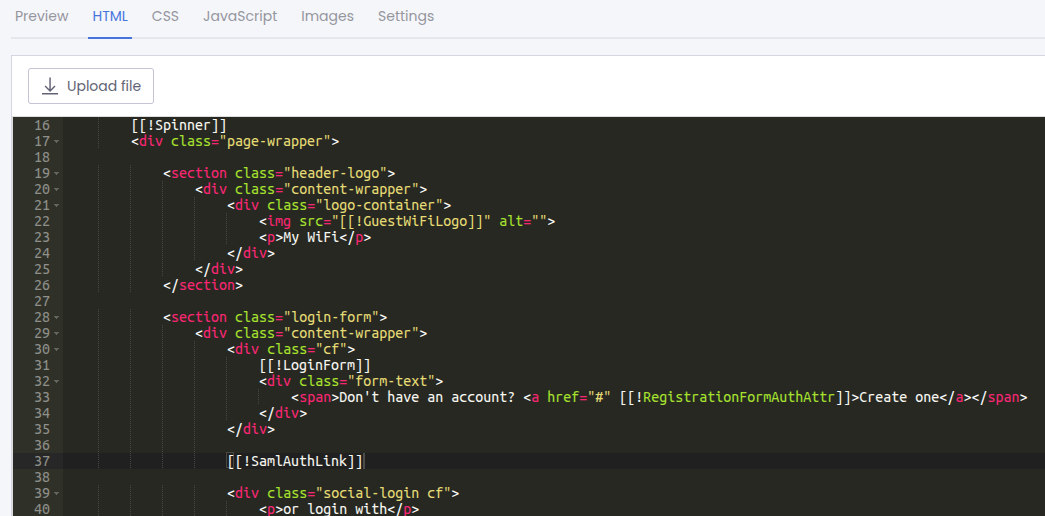

3. In the snippet library, locate and expand the Authentication links section and click on SAML to embed a [[!SamlAuthLink]] snippet at the cursor position in the HTML

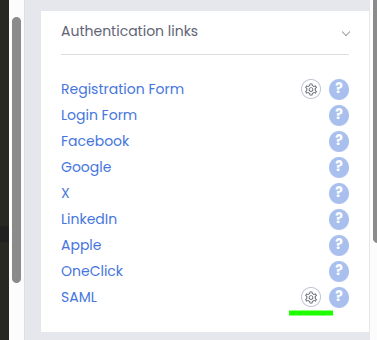

4. Click on the settings (cog) icon next to the SAML option in Authentication links to open SAML settings for the splash page

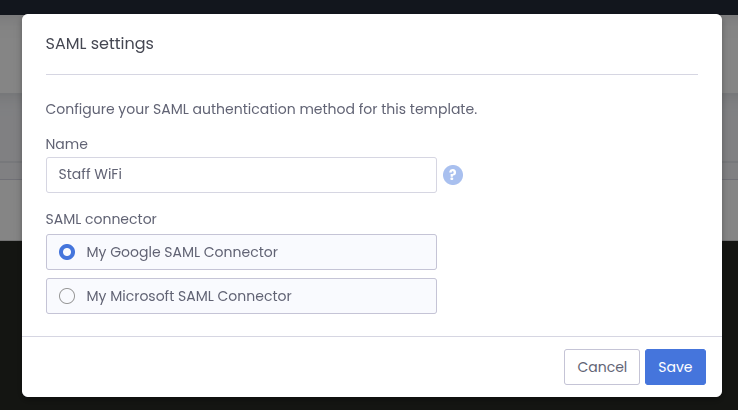

5. In SAML settings select the connector you want to use on the splash page for WiFi authentication, enter a display Name for the SAML HTML link and click Save



6. Save your splash page template to save the SAML settings
